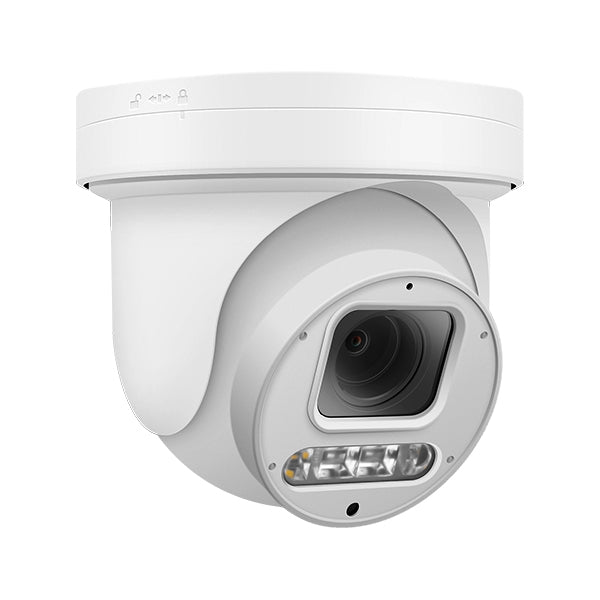

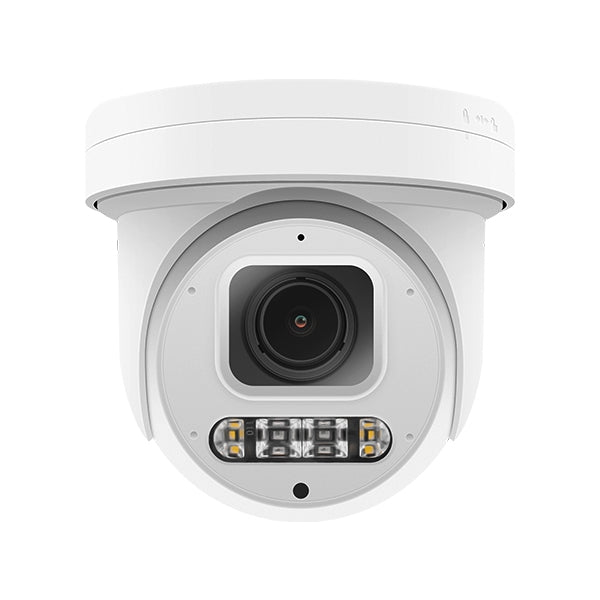

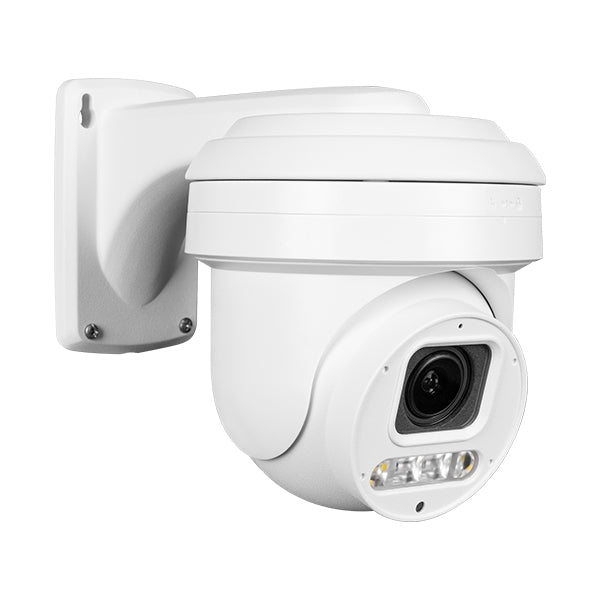

6MP Human and Vehicle Detection IR&Warm light IP PTZ dome camera JL716IRC-5X-HS

Model

JL716IRC-5X-HS

Camera

Image Sensor

1/2.8" Sony CMOS

Effective Pixels

6 megapixels

Electronic Shutter

AUTO, 1/10s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON)

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC /HLC

Support

DNR

2D/3D DNR

Other

Image adjust , Flip

Encode

Video Standard

H.265+/H.265/H.264

Video Resolution

Main Stream:

25fps@6MP(3072*2048),

30fps@4MP/3MP/1080P/720P

Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a/AAC

Two-way Audio

Yes

Smart Detection

Smart Human and Vehicle Detection

Micro-SD Slot

Max. 512G

Reset Key

Yes

IR & warm light Led

Led

4pcs array IR & warm Led

Distance

40 m (IR), 30 m (warm light)

Lens

Focal length

2.7-13.5 mm AF

Zoom

5x optical zoom

PTZ

Pan/Tilt Range

Pan: 0° ~ 280°; Tilt: 0° ~ 90°

Preset Point

10

Control Speed

Pan: 15° /s; Tilt: 15° /s

Guard Position

Support

Power-off Recovery

Support

Network Services

Protocol

HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP, etc.

P2P

Yes

Web

IE, Firefox, Chrome, Edge, Safari

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, PoE 48V in

Power Supply

12 VDC ± 10% 2A

Power Consumption

< 15 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH

Size

Φ120(mm)×110(mm)

Weight

0.68kg
